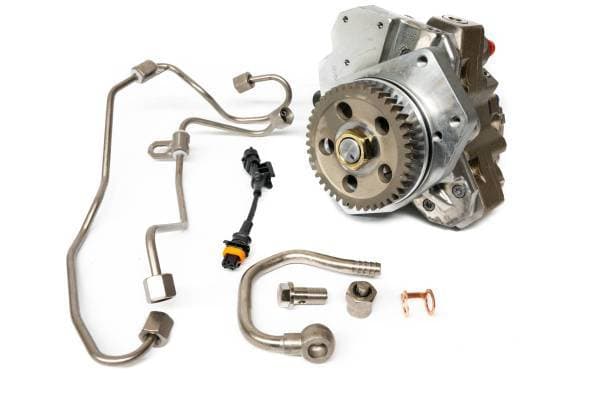

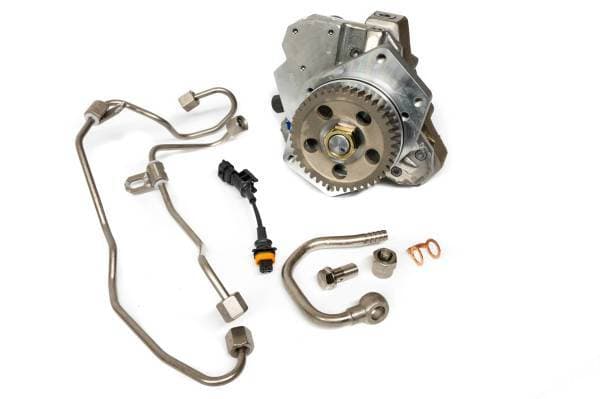

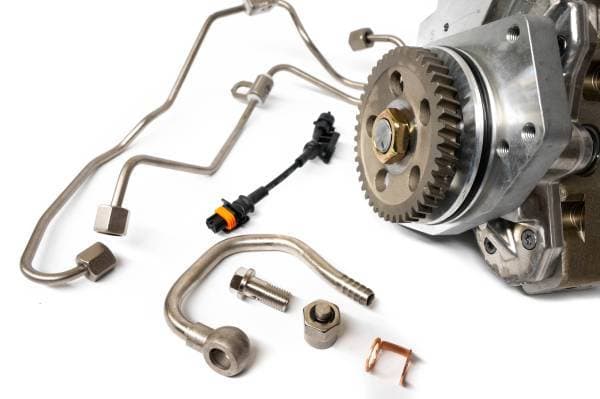

L5P CP3 Conversion Kit with 14mm CP3 pump.
Dan's Diesel Performance 14mm L5P CP3 conversion kit. Ideal for competition trucks with built engines and very large injectors. Kit includes the following.
- DDP custom 14mm stroker CP3 pump.
- CP3 mounting flange and drive gear already installed.
- Both DS and PS nickel treated high pressure feed lines with anti-vibration brackets.
- Billet quick connect feed fitting.
- 3/8" nickel treated return line, banjo bolt and seal.
- DS rail port cap.
- FCA extension harness.
The Dan's Diesel Performance 14mm CP3 pump is built from a brand new 6.7 based CP3. Features of our 14mm CP3 include:
- 14mm cam shaft with a hardness rating of 60 HRC for anti-wear and strength properties.
- Precision made TiN coated tappets.
- Improved tappet springs that are 25% stronger and longer to support high RPM applications.
- New DLC polygon cam follower.
- High flow plunger inlet valves and caps.
- High flow gear pump.
- High flow metering unit comes standard to allow for max pump flow throughout the rpm range while maintaining a smooth fuel flow curve for good street manners and easy tunability.
- Flow sheet with duty cycle points included.
- 2- Year unlimited mile warranty against manufacturer defects.
We recommend a 240 GPH lift pump with a boost compensated regulator. Supply pressure of 6-8 psi at idle and 25-30 psi at full throttle is ideal.
